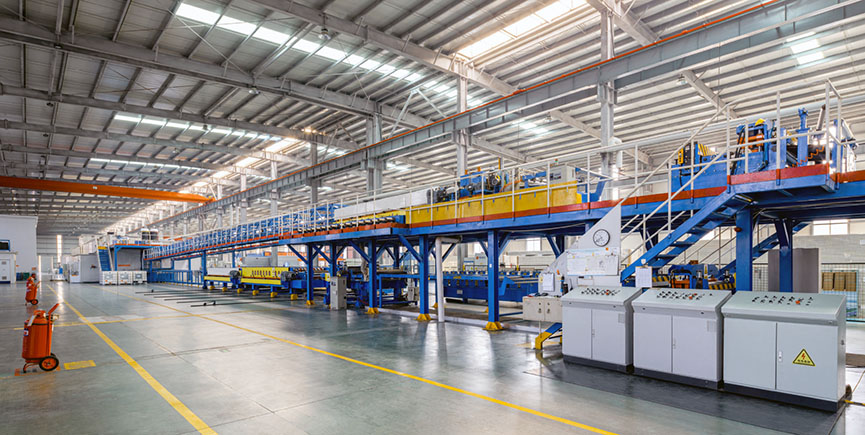

Automatic Continuous Production
Advanced automated production lines ensure consistent panel quality.

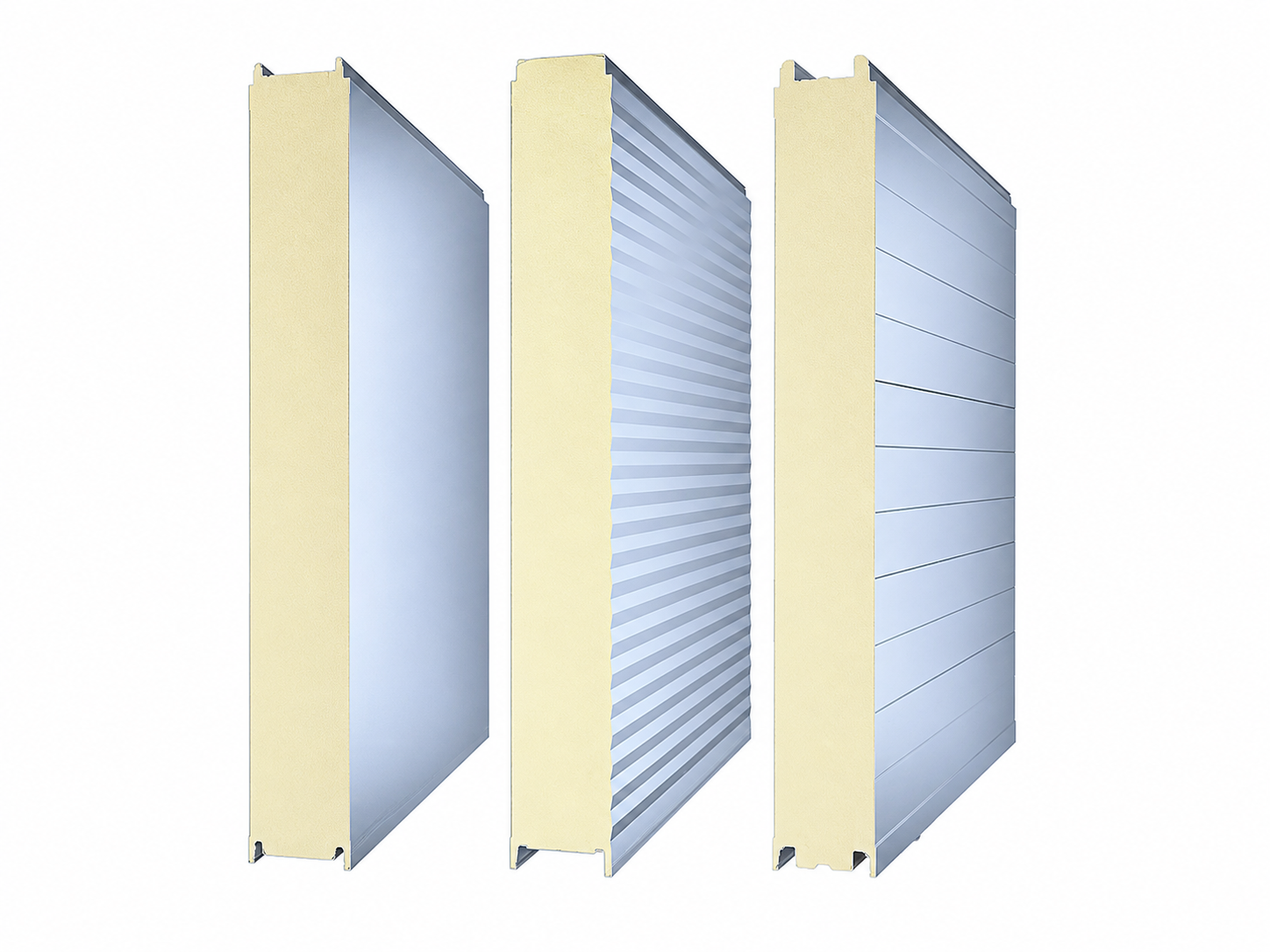

PU PIR Sandwich Panels for Cold Room Partition Wall
The cold storage is mainly composed of a refrigeration system, a thermal insulation system, and a control system. Among them, the cold storage enclosure system is the main component of the cold storage, and the main product is the energy-saving cold storage panels. The quality of its materials determines the safety of cold storage buildings and the effect of thermal insulation and energy saving. MasterCard has been focusing on the business of energy-saving thermal insulation materials for cold storage enclosure systems for many years, and provides customers with complete solutions from processing to warehousing through the new generation of polyurethane PIR pentane B1 core material formulation and scientific node design.
PaymentTT/LC
Product OriginChina
ColorCustomized as your request
Description
PU/PIR Sandwich Panels for Cold Room Partition Walls are designed for cold storage enclosures, refrigerated warehouses, food processing facilities, and other temperature-controlled environments. The panels combine color-coated steel or stainless steel facings with a high-performance PU/PIR rigid foam core, providing excellent thermal insulation, fire resistance, airtightness, and durability.
Available in widths of 930–1130 mm, core thicknesses of 40–300 mm, and lengths up to 26 m, the panels can meet different cold room construction requirements. The PU/PIR core features B1 fire rating, a closed-cell rate ≥90%, water absorption ≤3%, and thermal conductivity of approximately 0.018–0.024 W/(m·K), helping reduce heat loss and improve refrigeration efficiency.
Product Features
PU/PIR cold room panels provide reliable insulation and enclosure performance for low-temperature applications. Their prefabricated structure also helps improve installation efficiency and maintain stable cold storage conditions.
- Excellent Thermal Insulation
- Low thermal conductivity effectively reduces heat transfer and energy loss.
- Airtight & Watertight

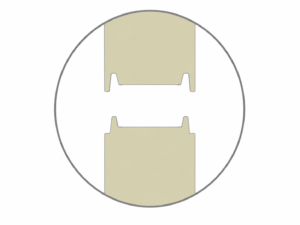

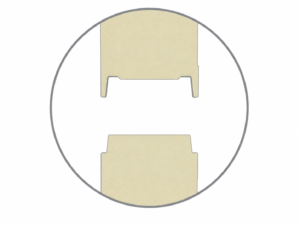

- Optimized panel joints help maintain airtightness, watertightness, and stable insulation performance.
- B1 Fire Resistance
- PU/PIR rigid foam provides reliable fire-retardant performance for cold storage applications.
- Durable & Corrosion Resistant
- High-quality coated steel or stainless steel facings provide good mechanical strength and long-term durability.
- Fast Installation
- Prefabricated panel construction simplifies on-site assembly and helps reduce construction time and labor costs.
Manufacturing Features
Precision Foaming
High-precision foaming equipment provides uniform PU/PIR core distribution.
Stable Curing Process
A 40-meter double-track production system improves foam curing and panel stability.
Eco-Friendly Foaming
Advanced pentane foaming technology supports a cleaner production process.
Parameters

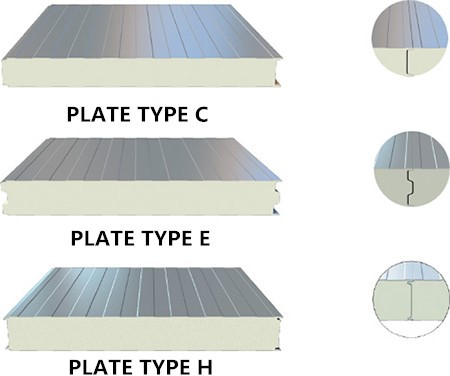

| Product Specifications | As shown in the figure |
|---|
| Plate Specifications | Width | 930–1,130 mm |
| Thickness | PU/PIR 40–300 mm, Rock Wool + PU 40–200 mm | |
| Length | ≤ 26 m | |
| Panel Specifications | Material | Colour Coated Steel Sheet, 304/316 Stainless Steel |
| Thickness | 0.4–0.8 mm | |
| Coating | PE, HDP, PVDF, SMP | |
|
Polyurethane Core Material (PU) |
Fire Rating | B1 Grade (Oxygen Index ≥ 30%) |
| Closed Pore Rate | ≥ 90% | |
| Water Absorption | ≤ 3% | |
| Thermal Conductivity | 0.018–0.024 W/(m·K) | |
| Heat-Resistant Range | -185°C to +110°C |
