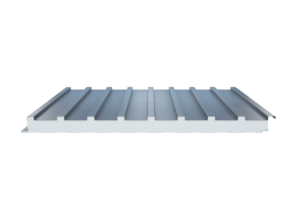

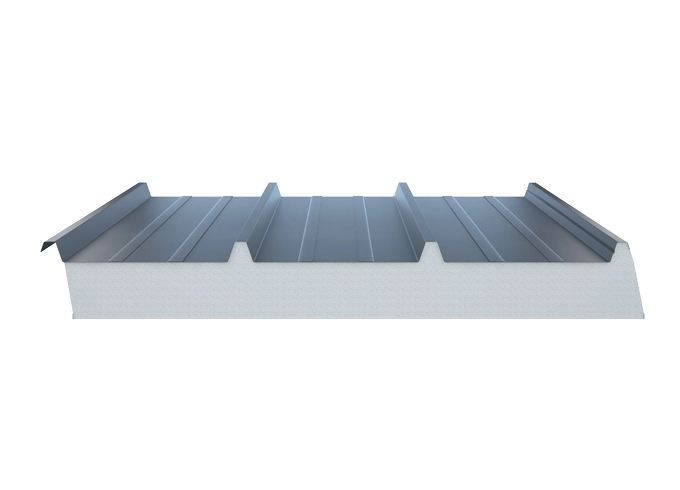

Metal-Faced Insulated Roofing Sandwich Panel
Qingdao Yunda metal-faced insulated roofing sandwich panels combine profiled metal facings with a high-performance insulation core to provide thermal insulation, sound reduction, weather protection and reliable roof strength in one prefabricated building component.
Payment TermsT/T or L/C
Place of OriginChina
Color OptionsCustomizable upon request
MOQ500 square meters
Description
Qingdao Yunda metal-faced insulated roofing sandwich panels combine profiled metal facings with a high-performance insulation core to provide thermal insulation, sound reduction, weather protection and reliable roof strength in one prefabricated building component.
The panels are available with PU, PU + glass wool, or PU + rock wool composite cores, allowing the insulation and structural configuration to be selected according to different project requirements. Their multi-wave profiled exterior surface improves panel rigidity and roof drainage, while the overlapping joint incorporates an air-chamber waterproof structure to help reduce rainwater penetration.
With lightweight construction, prefabricated dimensions and efficient overlapping installation, the roofing system can shorten on-site construction time and reduce structural loading. Different panel thicknesses, effective widths, metal facings, coatings and colors are available for industrial buildings, warehouses, logistics facilities, commercial buildings and prefabricated steel structures.
Product Features
The metal-faced roofing sandwich panel integrates the external roof surface, insulation layer and internal finish into one factory-produced panel. Depending on the selected model, the system can use steel, aluminum or steel-and-aluminum-foil facings together with polyurethane and composite insulation materials. The reference product range reports thermal conductivity of 0.020–0.040 W/(m·K) and panel weight of approximately 15–30 kg/m²
- Excellent thermal insulation performance
- Thermal conductivity of 0.020–0.040 W/(m·K)

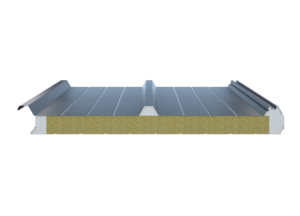

- PU, PU + glass wool and PU + rock wool core options
- Lightweight construction of approximately 15–30 kg/m²
- Multi-wave profiled roof surface for improved rigidity

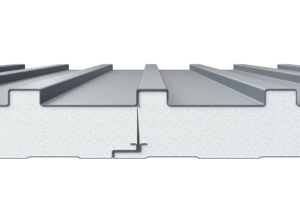

- Overlapping connection for fast roof installation

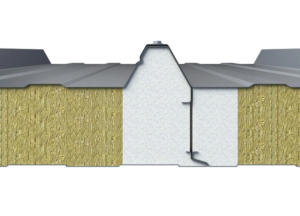

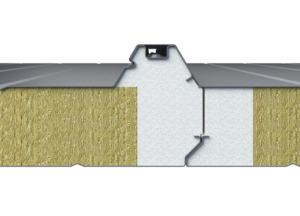

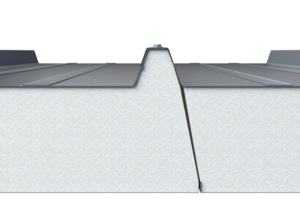

- Air-chamber joint design for improved waterproofing
- High-strength prefabricated panel construction
- Effective panel widths of 950 mm or 1,000 mm
- Panel thickness options from 20 mm to 150 mm
- Steel, aluminum and aluminum-foil facing options
- Outer steel-sheet thickness from 0.5 to 0.8 mm
- Inner steel-sheet thickness from 0.4 to 0.6 mm
- PE, SMP, HDP and PVDF coating options
- Custom colors available according to project requirements
- Suitable for industrial, commercial and prefabricated roofing systems
Manufacturing Features
Continuous Composite Panel Production
Waterproof Lap-Joint Forming
Multi-Material and Coating Control
Parameters
| Product Name | Metal-Faced Insulated Roofing Sandwich Panel |
|---|---|

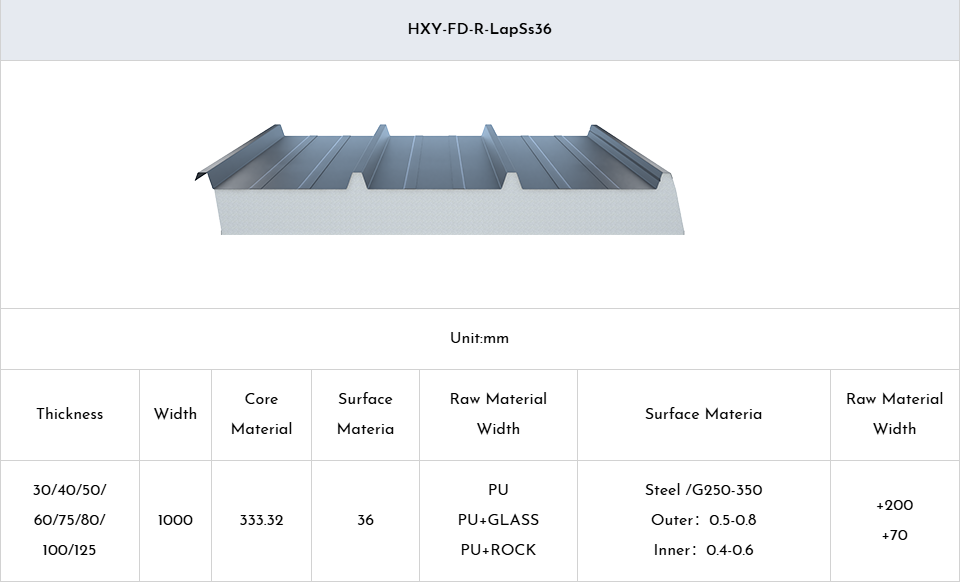

| Available Models | HXY-FD-R-LapSs36 / CapHT / LapSv40 / LapSoft / LapGW |
| Core Material | PU / PU + Glass Wool / PU + Rock Wool |
| Panel Thickness | 20–150 mm, depending on model |
| Thickness Options | 20 / 30 / 40 / 50 / 55 / 60 / 75 / 80 / 85 / 100 / 120 / 125 / 150 mm |
| Effective Panel Width | 950 mm / 1,000 mm |
| Surface Material | Coated Steel / Aluminum / Steel Plate + Aluminum Foil |
| Steel Grade | G250–G350 |
| Outer Steel Sheet Thickness | 0.5–0.8 mm |
| Inner Steel Sheet Thickness | 0.4–0.6 mm |
| Aluminum Facing Thickness | 0.3–1.0 mm |
| Thermal Conductivity | 0.020–0.040 W/(m·K) |
| Panel Weight | Approximately 15–30 kg/m² |
| Outer Surface Profile | Multi-Wave Corrugated Roof Profile |
| Panel Connection | Overlapping Roof Joint |
| Waterproof Structure | Air-Chamber Waterproof Joint |
| Steel Sheet Coating | PE / SMP / HDP / PVDF |
| Metallic Coating | AZM Coating Available |
| Production Method | Fully Prefabricated Composite Production |
| Color Options | Customizable Upon Request |
| Main Applications | Factory / Warehouse / Logistics Center / Commercial Building / Steel Structure |
| Minimum Order Quantity | 500 m² |
| Port of Shipment | Qingdao Port, China |
| Lead Time | Approximately 35–40 Days After Deposit |
