Cold Store Panel
The polyurethane cold storage panel uses high quality color coated steel sheet as surface material
Standard Panel Width1000
Pane Length2000≤L≤30000
Standard Panel Thickness75/100/120/150/180/200/220/250
Outer Steel Sheet0.5-0.8
Inner Steel Sheet0.4-0.5
Description
Cold Store Panel uses high-quality color-coated steel sheets as surface material; after rolling, the polyurethane foam liquid is injected into the middle of two layers of steel sheets, and the core material and the surface material are firmly combined through high-pressure mixing, foaming, and curing processes!
Product Features
A rigid polyurethane cold storage panel is recognized as the best thermal insulation material in the world. Compared with the previous systems such as polystyrene panel / extruded board /polyurethane spray coating used before:
- Low thermal conductivity
- Construction simplification
- Light weight,can reduce the pressure on the floor and foundation,reduce the cost of construction.
- It is a flame retardant
- It will not emit toxic or peculiar smell and other substances that pollute the goods.

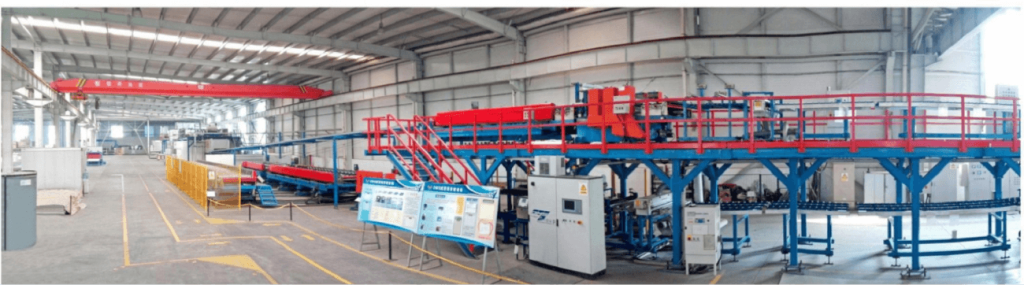

Manufacturing Features
Micro atomization online
Special stainless steel panel continuous forming technology
Constant temperature air drying system
Parameters
| Product Specifications | As shown in the figure |
|---|
| Specification(mm) | Standard Panel With | 1000 |
|---|---|---|
| Panel Length | 2000≤L≤30000 | |
| Standard Panel Thickness | 75/100/120/150/180/200/220/250 | |
| Steel Sheet Thickness(mm) | Outer Steel Sheet | 0.5-0.8 |
| Inner Steel Sheet | 0.4-0.5 | |
| Steel Sheet Coating | PVDF/ hi Resistant PE /Silicon Modified PE/PE(Coating Thickness≥20) | |
| Core Material | PUR(polyurethane) | PIR(polyisocyanurate) |
| Fire Rating | B2 | B1 |
| Core Average Density(kg/m³) | ≥40 | |
| Core Heat Conduct Index(W/m.k) | 0.022 | |
