Automatic Gluing
Two-component polyurethane adhesive ensures uniform bonding and reliable panel strength.
Cleanroom Wall Panel

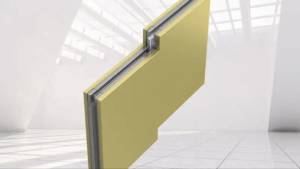

Cleanroom Wall Panels are designed for hygienic and controlled environments, offering excellent fire resistance, thermal insulation, durability, and easy installation. Available in customized sizes and thicknesses, they are widely used in pharmaceutical, food processing, laboratories, hospitals, electronics, and other cleanroom applications.
Thickness50mm, 75mm, 100mm
Width980mm、1180mm、20mm-1180mm (Customizable)
LengthCustomizable，Regular≤6000mm
Galvanizing keel≥0.6mm
Description

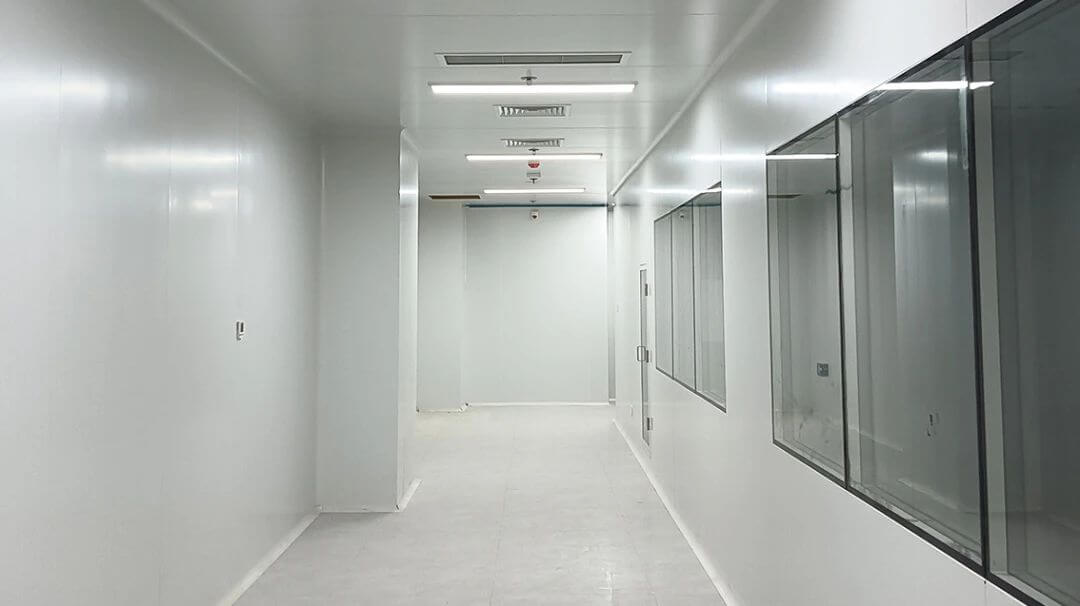

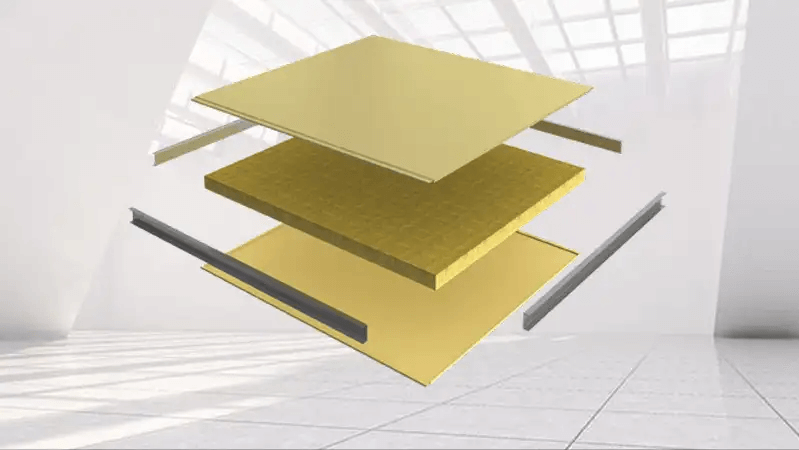

Tseason Cleanroom Wall Panels are prefabricated sandwich panels designed for clean and controlled environments. They provide a smooth, durable surface, reliable structural performance, thermal insulation, and fire resistance. The panels are suitable for pharmaceutical plants, food processing workshops, laboratories, hospitals, electronics facilities, and other areas with high cleanliness requirements.
Product Features
- Excellent Fire Resistance: Available with A-grade fireproof rock wool core for enhanced fire safety.
- Thermal Insulation: High-quality core materials provide good thermal insulation performance.
- Lightweight & High Strength: Panel weight is approximately 10–15 kg/m², with bending capacity ≥0.8 kN/m².

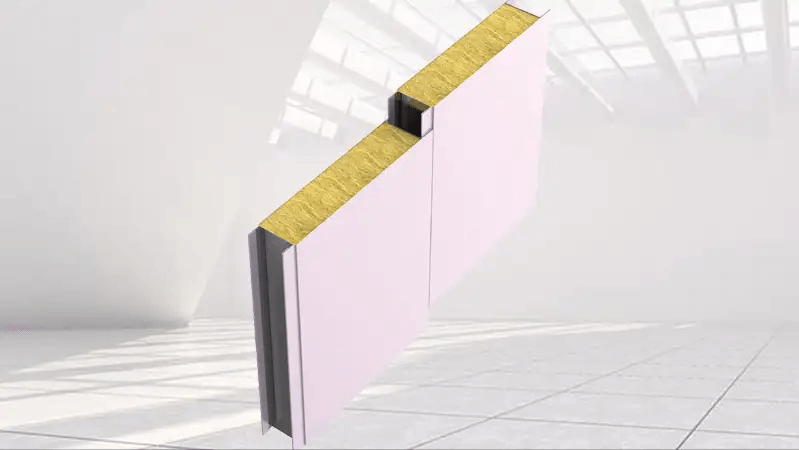

- Easy Installation: Dovetail groove connection allows fast assembly and helps reduce installation costs.
- Durable Construction: Galvanized side sealing keel thickness is ≥0.6 mm.
- Customizable: Different panel thicknesses, widths, lengths, surface materials, and core materials are available.
- Cleanroom Applications: Suitable for environments requiring hygienic, smooth, and easy-to-maintain wall systems.
Manufacturing Features
Precision Forming
Controlled pressing improves panel flatness, bonding performance, and structural stability.
Strict Quality Control
Each panel is inspected during production to ensure consistent appearance, dimensions, and overall quality.
Parameters
| Product Specifications | As shown in the figure |
|---|
| Product Series | Manual Rockwool Purification Panel | Manual Glass Magnesia Rockwool Purification Panel | Manual Aluminum Honeycomb Purification Panel | Manual Magnesium Sulfur Oxide Purification Panel |
|---|---|---|---|---|
| Thickness | 50mm、75mm、100mm | 50mm、75mm、100mm | 50mm、75mm、100mm | 50mm、75mm、100mm |
| Width | 980mm、1180mm、20mm-1180mm (Customizable) | 980mm、1180mm、20mm-1180mm (Customizable) | 980mm、1180mm、20mm-1180mm (Customizable) | 980mm、1180mm、20mm-1180mm (Customizable) |
| Length | Customizable, Regular≤6000mm | Customizable, Regular≤6000mm | Customizable, Regular≤6000mm | Customizable, Regular≤6000mm |
| Plane materiel | 0.4mm-0.8mm colour coated steel sheet、stainless steel panel、Aluminum alloy panel | 0.4mm-0.8mm colour coated steel sheet、stainless steel panel、Aluminum alloy panel | 0.4mm-0.8mm colour coated steel sheet、stainless steel panel、Aluminum alloy panel | 0.4mm-0.8mm colour coated steel sheet、stainless steel panel、Aluminum alloy panel |
| Rockwool | A level fireproof, Good thermal insulation performance, It can be installed as male and female slots | |||
| Core materials | Single-sided or double-sided glass magnesium rock wool | 0.1mm Hexagonal honeycomb made of aluminum foil | Hollow magnesium sulfur oxide panel | |
| Galvanizing keel | ≥0.6mm | ≥0.6mm | ≥0.6mm | ≥0.6mm |
| Feature | A level fireproof, Fire Resistance Limit≥1h, High intensity. It suits food and medicine workshops with high cleanliness requirements and ceilings. | A level fireproof, Fire Resistance Limit≥1h, High intensity. It is suitable for food and medicine workshops with high cleanliness requirements and ceilings. | Light texture, high strength, excellent sound insulation | Light texture, high strength, excellent sound insulation |
